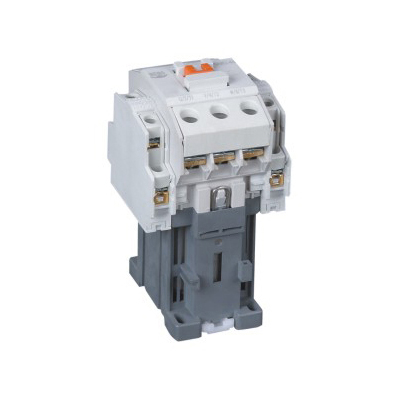

GMD-32,40

Poles of DC circuit

Type	Number of poles	Rate current (DC2,DC4)DC motor load(L/R=115MS)				Rate current(DC1) DC motor load(L/R=1MS)				Rate current(DC1)Coil load (L/R=100MS)
Type	Number of poles	24V	48V	110V	220V	24V	48V	110V	220V	24V	48V	110V	220V
CSLSD-9	2	8	4	2.5	0.8	10	10	6	3	8	4	2	0.3
CSLSD-9	3	8	6	4	2	10	10	8	8	8	6	3	0.8
CSLSD-12	2	12	6	4	1.2	12	12	10	7	12	6	3	0.5
CSLSD-12	3	12	10	8	4	12	12	12	12	12	10	5	2
CSLSD-18	2	12	6	4	1.2	18	18	13	8	12	6	3	0.5
CSLSD-18	3	12	10	8	4	18	18	18	18	12	10	5	2
CSLSD-22	2	20	15	8	2	20	20	15	10	20	12	3	1.2
CSLSD-22	3	20	20	15	8	20	20	20	20	20	15	10	4
CSLSD-32	2	25	20	10	3	25	25	25	12	25	15	4	1.2
CSLSD-32	3	25	25	20	10	25	25	25	22	25	25	12	4
CSLSD-40	2	35	20	10	3.5	25	25	25	12	35	15	4	1.2
CSLSD-40	3	35	30	20	12	35	35	35	30	35	25	12	4
CSLSD-50	2	45	25	15	3.5	40	40	35	15
CSLSD-50	3	50	35	30	12	50	50	50	40
CSLSD-65	2	45	25	15	3.5	40	40	35	15
CSLSD-65	3	50	35	30	12	65	65	65	50
CSLSD-75	2	65	40	20	5	65	65	50	20
CSLSD-75	3	80	60	50	20	75	75	75	55
CSLSD-85	2	65	40	20	5	65	65	50	20
CSLSD-85	3	80	60	50	20	80	80	80	60
CSLSD-100	2	100	90	40	30	100	100	80	50
CSLSD-100	3	100	90	80	50	100	100	100	80
CSLSD-125	2	120	60	40	30	100	100	80	50
CSLSD-125	3	120	90	80	50	120	120	100	80
CSLSD-150	2	150	100	80	60	120	120	100	100
CSLSD-150	3	150	130	120	80	150	150	150	150
CSLSD-180	2	180	150	120	80	180	180	150	150
CSLSD-180	3	180	180	150	100	180	180	180	180
CSLSD-220	2	220	150	120	80	180	180	150	150
CSLSD-220	3	220	220	150	100	220	220	220	220
CSLSD-300	2	300	200	150	90	240	240	200	200
CSLSD-300	3	300	280	200	150	300	300	300	300
CSLSD-400	2	400	200	150	90	240	240	200	200
CSLSD-400	3	400	280	200	150	400	400	400	300
CSLSD-600	2	630	630	630	630	630	630	630	630
CSLSD-600	3	630	630	630	630	630	630	630	630
CSLSD-800	2	800	630	630	630	800	800	630	630
CSLSD-800	3	800	630	630	630	800	800	680	800
