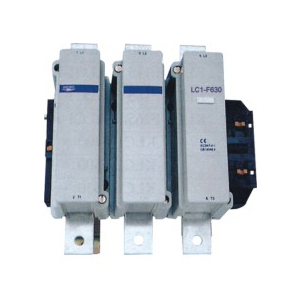

LC1-F630

APPLICATION
LC1-F series AC contactor (the follovings are called contactor),it is used in 50Hz/60Hz,allocated special with coil.Which can be used in the circuit of 40-400Hz,voltage up to 660V,current up to less than 630A electriccircuits, It is maining used for putting through and breaking the main circuit and also for frequently staring and controlling motor. It can unify the general electrical equipment,motor and circuit.The auxiliary contact group.Air time-delay head.Mechanical interlock contactor and star-triangle starter.The thermal-relay it can form the magnetic starter.
SPECIFICATIONS

APPLICATION
With fine and compact strcture.Function moulding,and corwood assembly seero liner line layout,The contactor is protective type,the acting mechanism is line motion type,the contact is doublebreaking point.Add mechanical interlock organization between two contactors to form mechaical interlock contactor(reversible shift contactor)
SPECIFICATIONS

Type			LC1-F115	LC1-F150	LC1-F185	LC1-F225	LC1-F265	LC1-F330	LC1-F400	LC1-F500	LC1-F630
Rated operational current	AC-3	380V	115	150	185	225	265	330	400	500	630
	AC-3	660V	86	107	118	125	170	325	305	355	460
	AC-4	380V	52	60	79	85	105	217	138	147	1880
	AC-4	660V	49	61	69	82	98	118	135	145	170
Pe(kw) Controlled squirrel-cage asnchronous motor's max power pe(kw)	AC-3	380V	55	75	90	110	132	160	200	250	335
	AC-3	660V	80	100	110	129	160	220	280	335	450
	AC-4	380V	25	30	40	45	55	63	75	80	100
	AC-4	660V	45	55	30	75	90	110	129	140	160
Convention althermal current			200	250	275	315	350		500	700	1000
Vrated operational voltage			380、660
Rated insulation voltage			660
Operating frequency			IEC947、GB14048
AC-3	Electrical endurance		60×10⁴		50×10⁴			30×10⁴		20×10⁴
AC-3	Swiching frequency		600					300
AC-4	Electrical endurance				15×10⁴			8×10⁴		5×10⁴
AC-4	Swiching frequency		150
(×10⁶)Mechanical endurance			3×10⁶					1×10⁶
Auxiiary contacts	AConveentional thermal current		10
	Electrical endurance	AC-15	60×10⁴		50×10⁴			30×10⁴		20×10⁴
	Electrical endurance	AC-13	60×10⁴		50×10⁴			30×10⁴		20×10⁴
