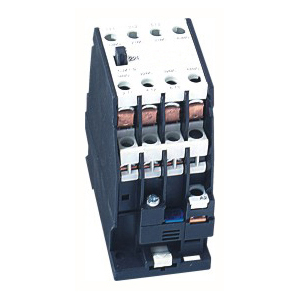

CJX1-9,12(3TF40,41)

APPLICATION
3TF Series AC Contactor are suitable in electrical system with AC 50/60HZ,rated operational voltage up to 660V,in ac-3 usage,rated operational voltage up to 380V,rated operational current up to 630A to make or break remote motos or system.The form electromagnetic starters with suitable thermal over load or phase-failure.The are mode according to IEC947.BS5424 & VDE0660.The contactor is a straight motion mechanism having double-breaking contacts.The auxiliary contacts are arranged 2NO.2NC at most,It is employed the flexible locking connection be-tween the contact support and core,three are no arcisolated panle in the le≥32A contacotors,there are moulded arc-chute with arcisolated panel,because all contacts are made of high nonfusibility and against corrosion silveralloy.All series products can be mounted by screws,le≤32A contactor also by installation rail.
SPECIFICATIONS

Type			3TF34	3TF35	3TF40	3TF41
Rated insulation voltage			690	690	690	690
Rated operational current(380V)		AC-3	32	38	9	9
Rated operational current(380V)		AC-4	15.6	18.5	3.3	4.3
Rated outputs of three-phase motors at 50Hz	AC-3 AC-4	230/220V	8.5	11	2.4	3.4
		400/380V	15	18.5	4	5.5
		500V	21	25	5.5	7.5
		690/660V	23	23	5.5	7.5
		1000V	-	-	-	-
	400/380V		7.5	9	1.48/1.4	2/19
	690/660V		13	15.5	2.54/2.4	3.45/3.3
Conventional thermal current of auxiliary contacts			10	10	10	10
Rated operational current of auxiliary contacts		AC-15 380/220V	4/6	4/6	4/6	4/6
Weight			AC0.68	AC0.68	AC0.43	AC0.43
