2351/2451

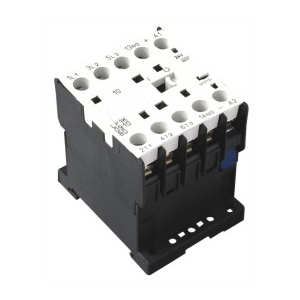

LC1-K06,K09,K12

APPLICATION
LC1-K series AC contactor is suitable for using in the circuit up to the rated voltage 660 AC 50Hz/60Hz,ratedcurrent up to 12A,for frequent starting,controling the AC motor.The addtion of auxliary contact group to the contactor,combined with theproper thermat relay,can act to protect the circuit bound to overload,Contactor designed by traverse double breaking points,blocking and zero flash-over,it has characteristic of multi-functional combination,small volume and reliabilty,and can replace LC1-K,LC1-E series of TE company,products have been widely applied to signal magnifying switch in micro-electroni interface.
TYPE AND MENAING

SPECIFICATIONS

Type	Rated operating current (A)	AC-3Use group				Contact number
		control powerkw
		220V	380/415V	440/500V	600V
LC1-K06	6	1.5	2.2	3	3	3P+NC 3P+NO
LC1-K09	9	2.2	4	4	4	3P+NC 3P+NO
LC1-K12	12	3	5	5	5	3P+NC 3P+NO
